360 Camera System
with Driver Monitoring
Enhanced Safety Through Complete Vehicle Visibility
The 360 Camera System provides a complete and reliable view around the vehicle to improve overall awareness, safety, and driving efficiency. It begins with a bird’s-eye view and front and rear perspectives, switching automatically to side or rear views when reversing or turning. A dedicated control activates the panoramic view, while the operator-facing camera detects distraction or fatigue to promote safer, more focused, and attentive driving.
Applications:
- Trucks, Buses and Coaches
- Mining Vehicles
- Trucks and Trailers
Key Features
Robust Hardware
- IP67 rated cameras and controller
- Latest in camera technology
- Internal memory for event recording
- Ready to integrate with telematics devices
Simple to Install
- Plug and play cameras and control module
- Flexible locations for camera installation
Simple to Calibrate
- Full size “Calibration mats” not required
- Calibration “Squares”
Camera Views

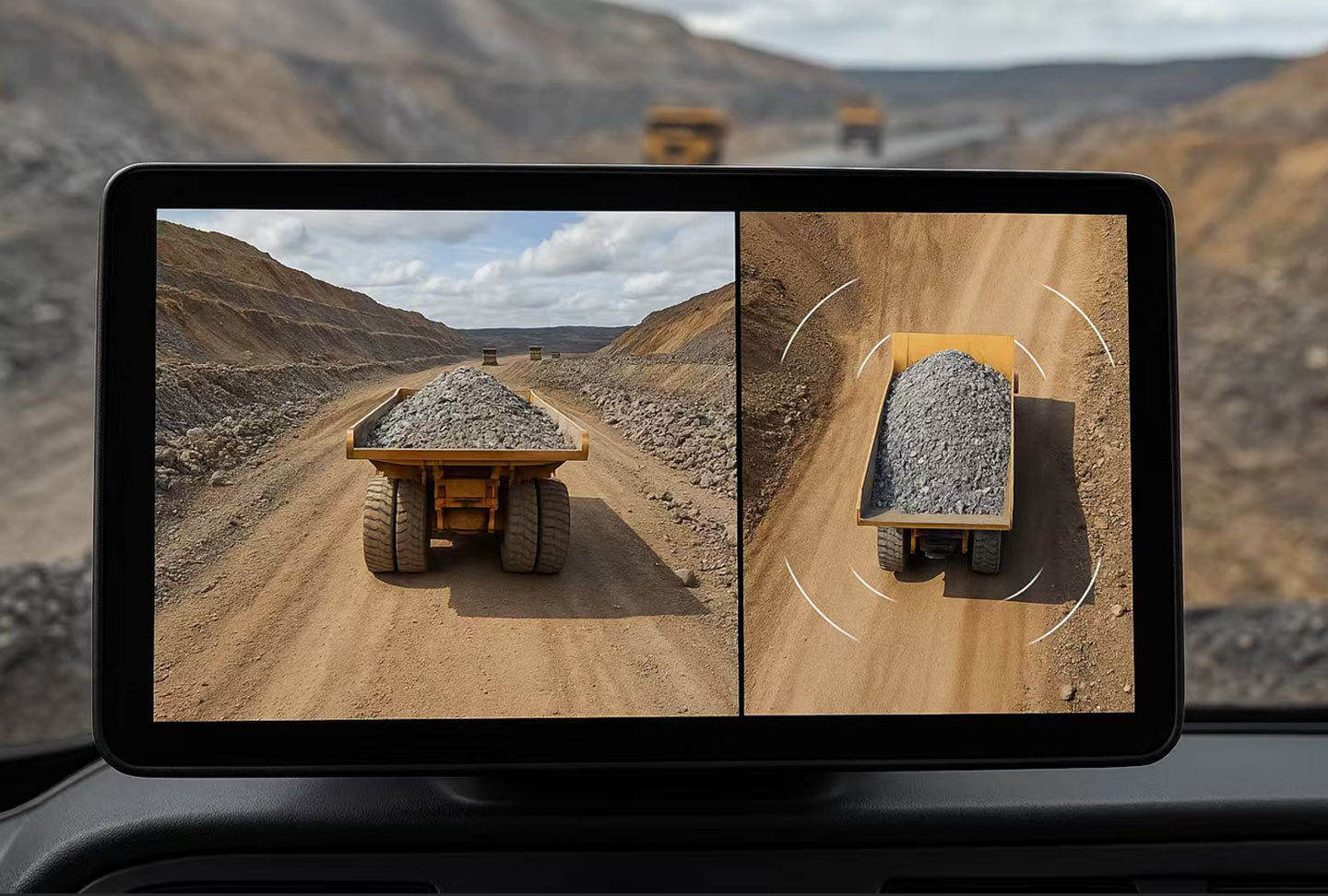

The Default Display
2D bird’s-eye view + front / rear view when power on.
Reversing Mode
When the reversing signal is obtained, display will show bird’s eye view + rear view.
Driving Mode
When the vehicle speed is greater than 30 km/h, it will only show front view.
Left/Right View Switch
When the wheel turns over 45 degrees or a signal is used, the view switches to the matching side camera.
3D Panoramic View
Customer designated switch to turn to 3D Panoramic view.
Operator Facing Camera
Distracted or fatigued driver monitoring to promote safer driving practices.
