Advanced Tire Management for Commercial Vehicles.
SpartanLync’s Tire Pressure and Temperature Monitoring System, Valor Commercial, has been developed specifically for industrial and commercial use. By increasing safety, reducing tire maintenance costs as well as fuel expenses by monitoring vehicle tires, Valor Commercial TPMS meets the challenges of fleet management.
With sensors installed inside the tires air pressure and temperature are measured every 4 seconds. Within moments, these values are wirelessly transmitted to the cab display, either directly or via transceiver. The display identifies each sensor and evaluates the data, showing each tire’s position, air pressure and temperature.
Configurable alerts and warnings will also notify the driver when any problem is detected. Avoid potentially dangerous accidents caused by a blow out, while staying ahead of regular tire maintenance by detecting leaks. This tire data can be downloaded or sent to fleet managers in real-time, for optimized fleet management.
Features
Simultaneously check both air pressure and temperature
Real time monitoring 24/7
Long lasting battery life
(5 – 7 years)
Immediate warning for high/low pressure, air leakage and high temperature
Internally installed sensors are safe, secure and reliable
Simple fleet management monitors all fleet tires in real time
One complete solution
The Valor Commercial TPMS system uses four simple components to create one complete solution. Once installed, tire management is both simple and effective. The diagram below indicates a typical setup on larger vehicles such as transport trucks.

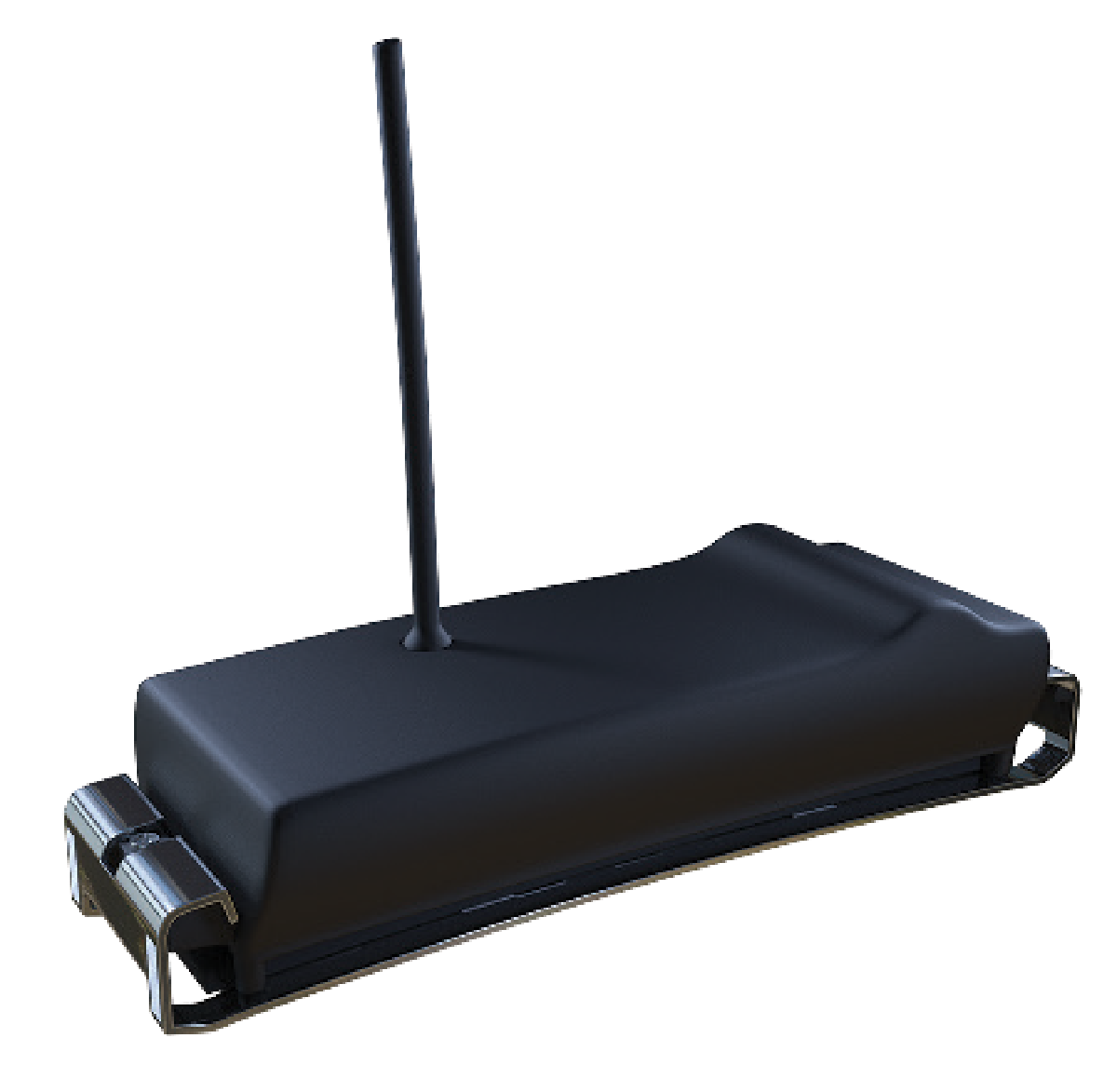

Sensor
The Internally-mounted sensor monitors both your tire’s temperature and pressure from the inside-out.
Antenna and Transceiver
The antenna receives data wirelessly from the sensors and then transmits into the transceiver.

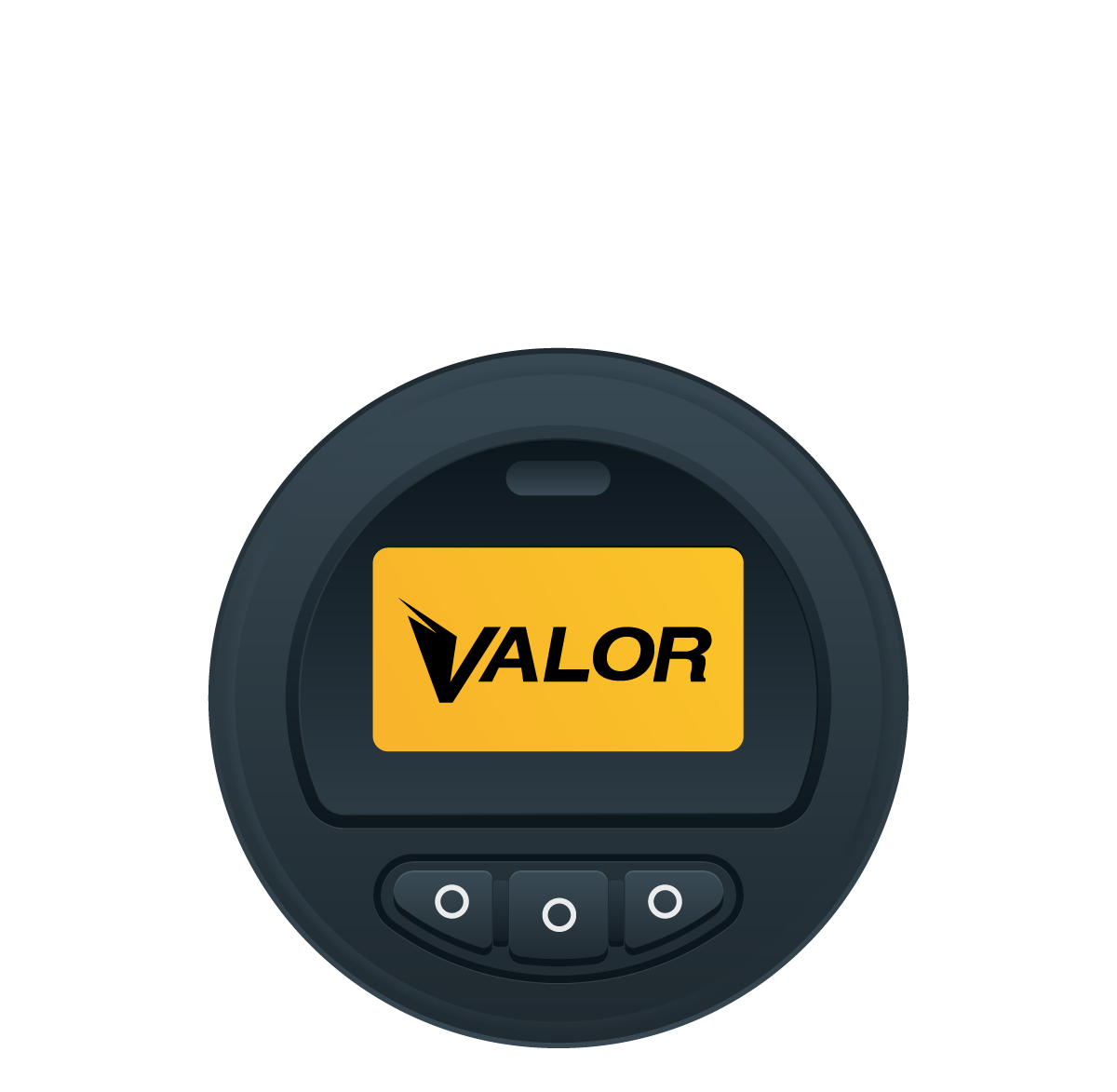

Display
SpartanLync’s display visualizes tire pressure and temperature data in real-time.
*Display Varies depending on solution.
Drop and Hook Technology
With SpartanLync’s Drop and Hook Technology, there is no need to reconfigure your TPMS system each time a truck and trailer are paired.
The TPMS system and display automatically recognizes the tire sensors associated with the new trailer and begins wireless data transmission instantly. This makes it easy to mix and match any tractor and trailer without having to modify sensors; keeping your fleet productive and on the go.
Signal Strength
SpartanLync has gone to extreme lengths in order to ensure unrivalled signal strength. Even in the toughest conditions, you can always rely on SpartanLync sensors to deliver real-time pressure and temperature, wherever you may be.
Fleet Management Software Integration
Looking for a more complete tire management solution? Use Geotab or Peoplenet fleet management software to consolidate your entire fleet’s tire pressure and temperature data on one convenient platform.
We know managing a fleet can be challenging. That’s why we’ve been proactive and designed our solution to seamlessly integrate with platforms like Geotab’s fleet management software. With data transmitted wirelessly through your Geotab GO devices, you can now monitor the health of your tires in real-time from the convenience of the MyGeotab software. Worry less about your tires and stay focused on managing fleet performance.
Sensor Equipment
Generation 1
Sensor
- Fixed time transition rate 12 seconds
- 4800 baud rate data transfer
- IP64 rating for water and dust
- Battery life 3-5 years

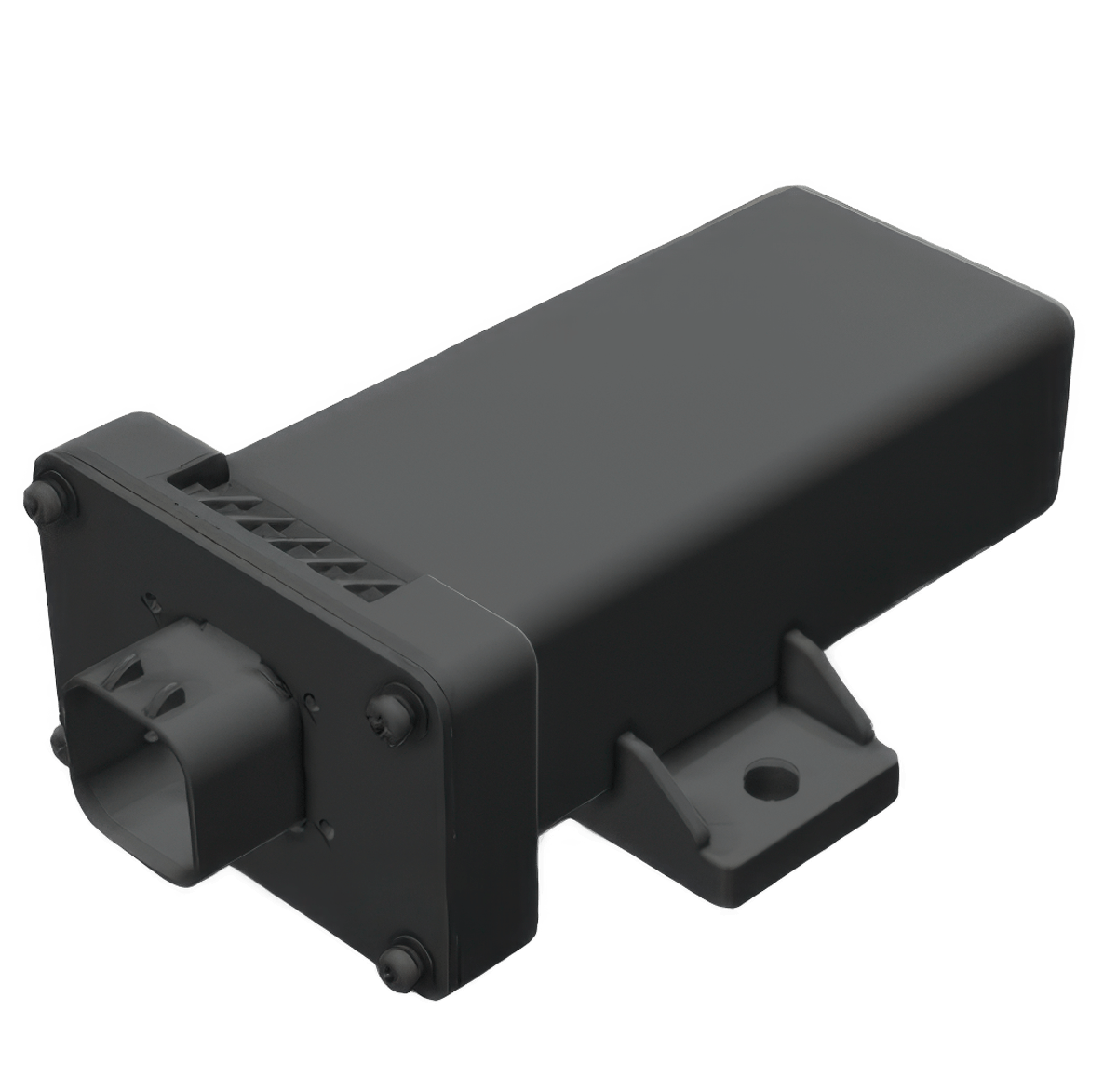

ECU/Control Module
- Mounting in vehicle
- Installed at body builder
- IP62
Antenna
- Coaxial front and back
- Magnetically mounted
Programing
- Smartool
Generation 3
Sensor
- Intelligent transmition rates to optimize data and battery life
- 19200 baud rate for data transfer
- IP6K9K rate for water and dust
- Battery life: 5 year
ECU/Control Modue
- Frame mounted
- Factory installed on frame at FCCC
- IP6K7 for mounting on frame
Antenna
- Internal to primary and secondary ECU module
- Frame mounted
Programing
- Smartool
- Virtual Com Port with NexIQ interface
- Auto learn
