High-performance power modules for automotive applications
SpartanLync has developed patented technology to produce dynamic tracking driver chips. With this technology as the core, we have designed power and charging modules. Switching control and voltage control is optimized through the use of real-time and innovative current-tracking control. The use of this advanced technology reduces system heat and improves the EMI of the system.
We are committed to providing high-performing charging and power hardware for your automotive applications.
Features
Dynamic current control
Reduce system heat
Reliable high-performance power
EV Charger Modules

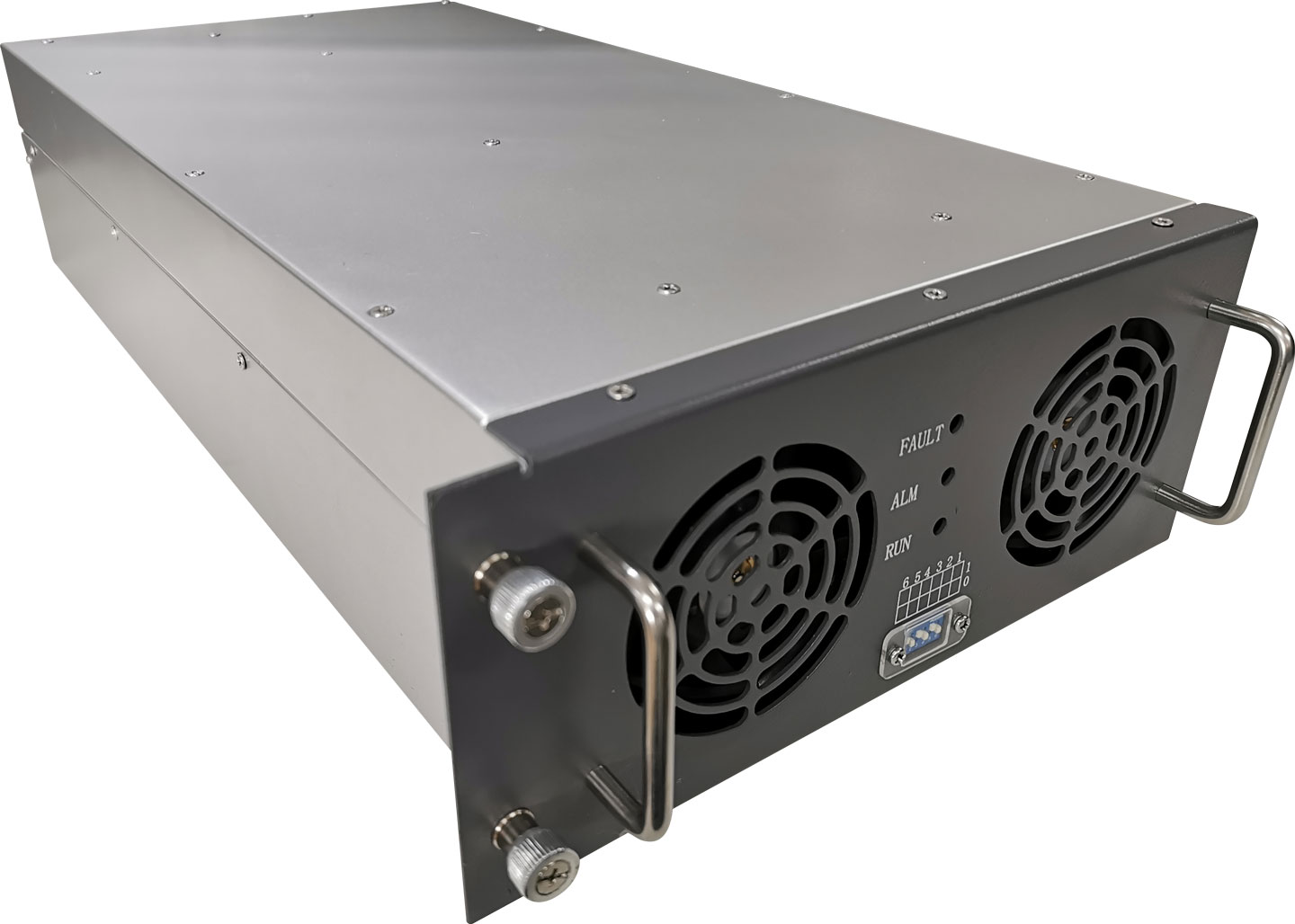

EV Charger Module 20kW/30kW 200-1000VDC
Input Voltage: 260~485VAC
Output Voltage: 200V~1000VDC
Power: 20kW, 30kW
Cooling Method: air-cooling
Galvanic isolation between input and output
Efficiency ≥94%
Working Temperature Range: -40℃~+75℃
– Full protection against short circuit, overcurrent, overvoltage and others.
– Full digital control, support CAN communication
– Support multi-unit parallel connection with balanced output flow control.
– ROHS Compliant

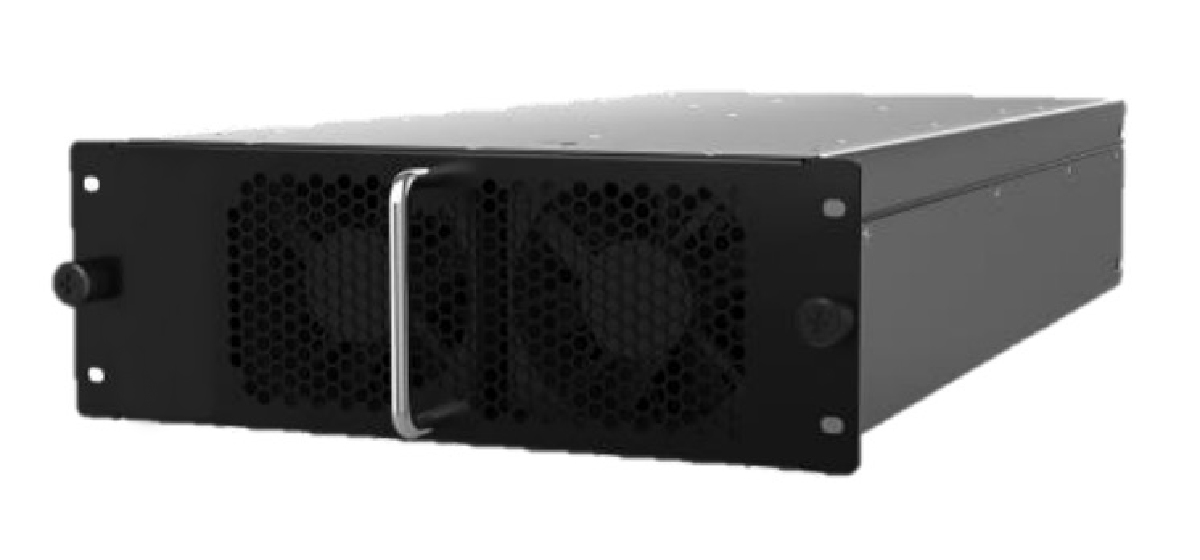

30kW
20kW
EV On Board Charger AC/DC Module
Input Voltage: 85~265VAC
Output Voltage: 200V~450VDC
Power: 3.3kW, 6.6kW
Cooling Method: air-cooling; Water-cooling
Galvanic isolation between input and output
Efficiency ≥94%
Working Temperature Range: -40℃~+85℃
– Full protection against short circuit, overcurrent, overvoltage
– Full digital control, supports CAN communication
– Water-cooling bidirectional charger built with GaN components contributes to higher efficiency, higher power density with a compact size.

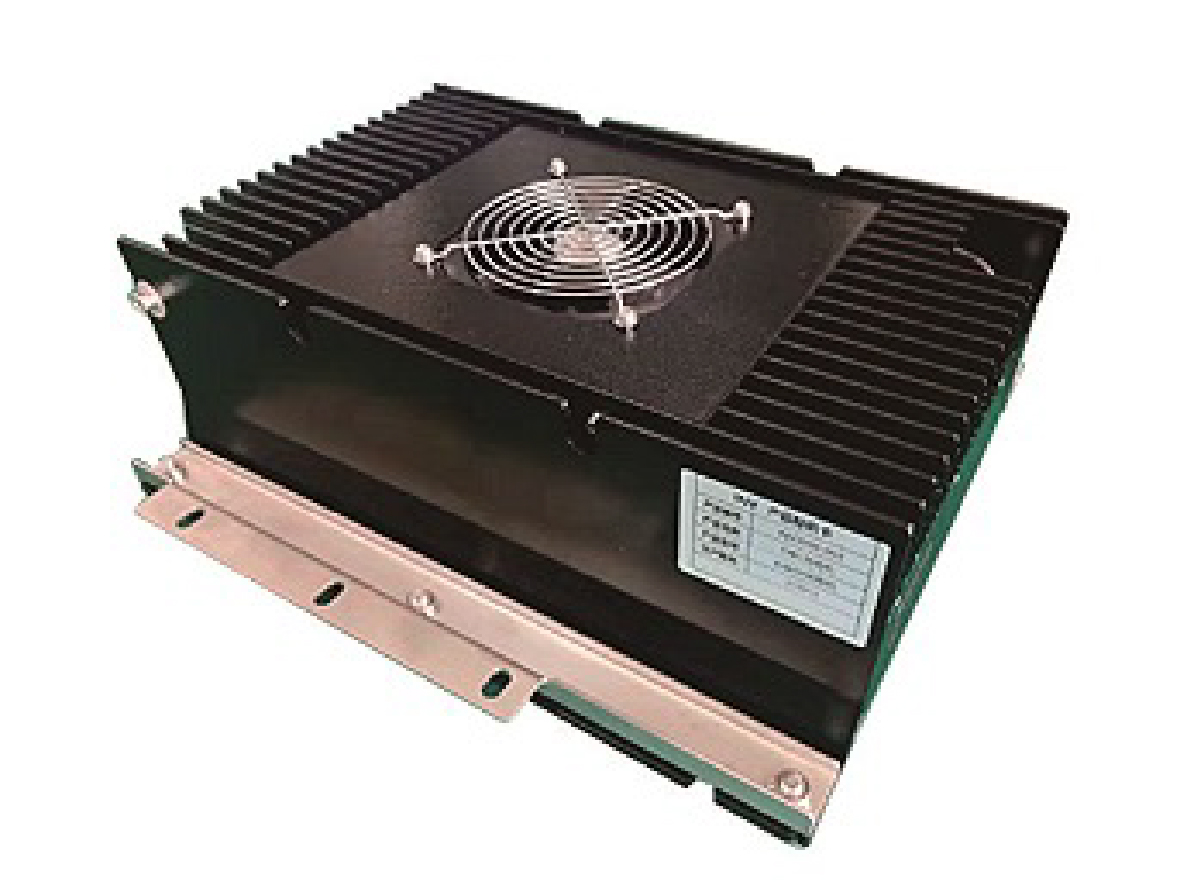

6.6kW
Air-cooling

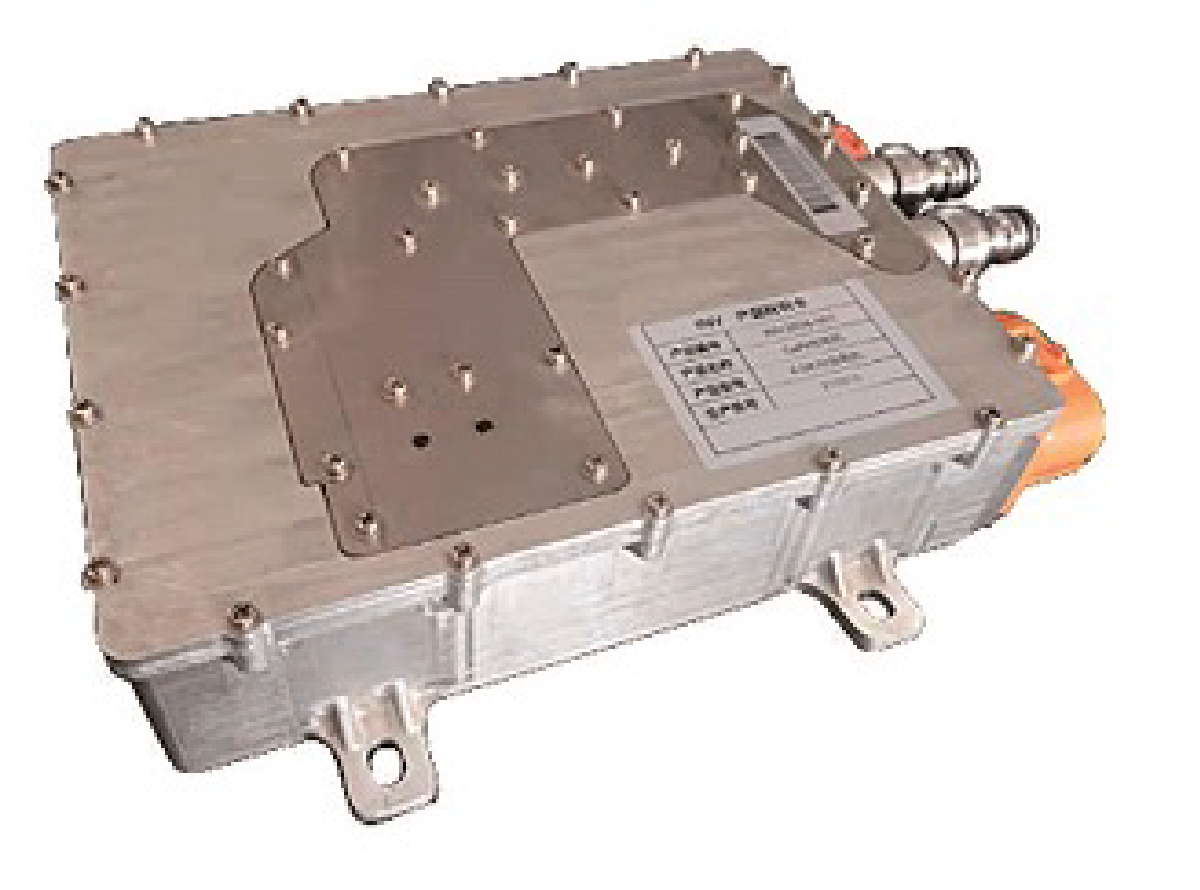

6.6kW
Water-cooling Bidirectional
DC / DC Converter
Input Voltage: 240~450VDC
Output Voltage: 12V/24V/48V adjustable
Power: 1kW, 2kW, 3kW
Cooling Method: Air cooling, self-cooling
Galvanic isolation between input and output
Efficiency ≥94%
Working Temperature Range: -40℃~+85℃
– Full protection against short circuit, overcurrent, and overvoltage.
– Automatic switching between constant voltage and constant power modes
– Supports CAN (J1939) communication

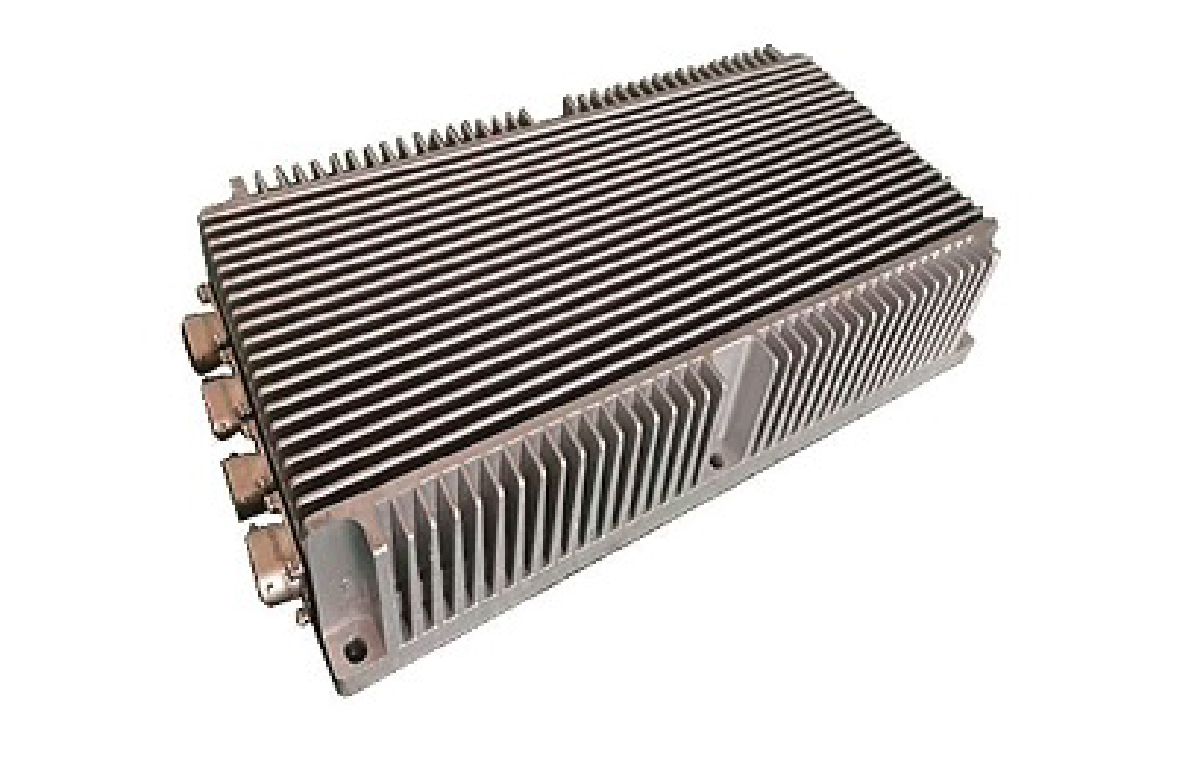

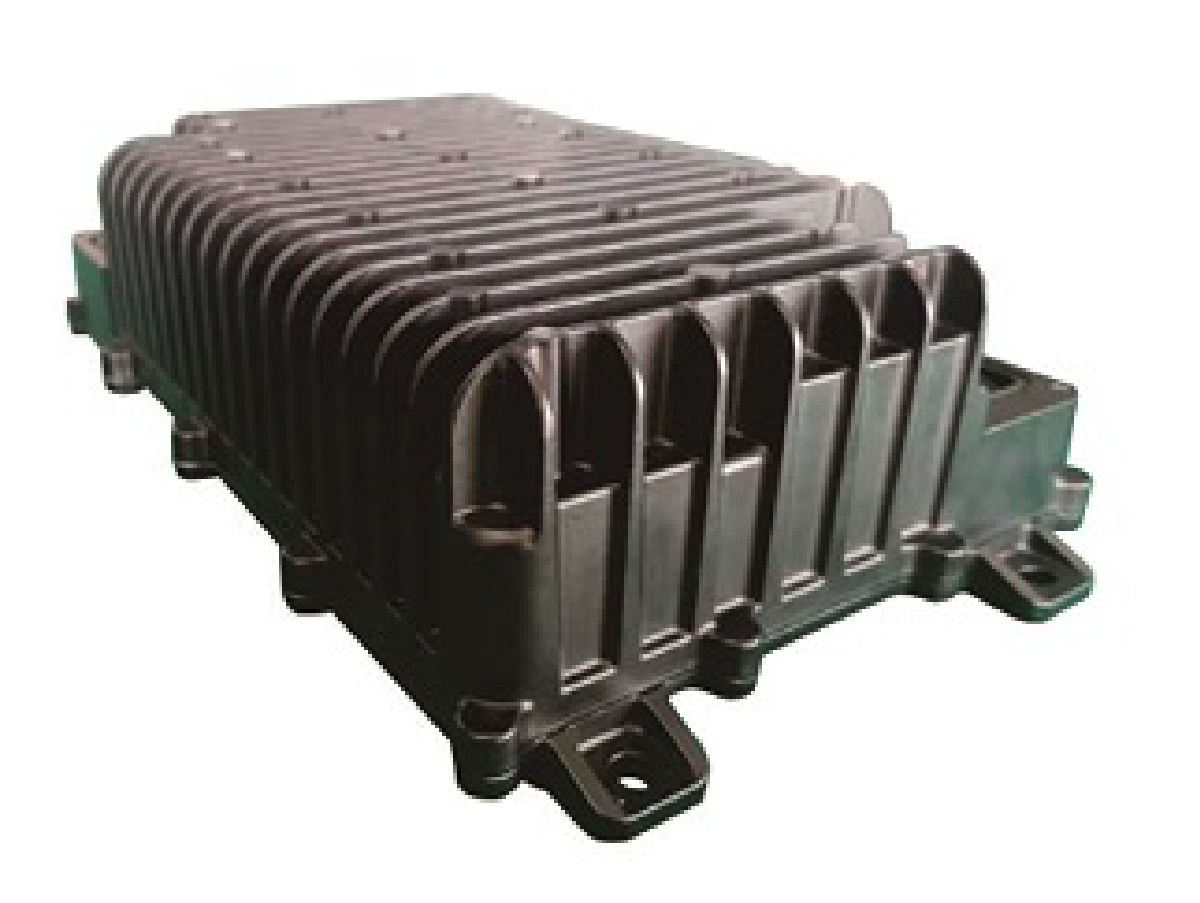

1kW

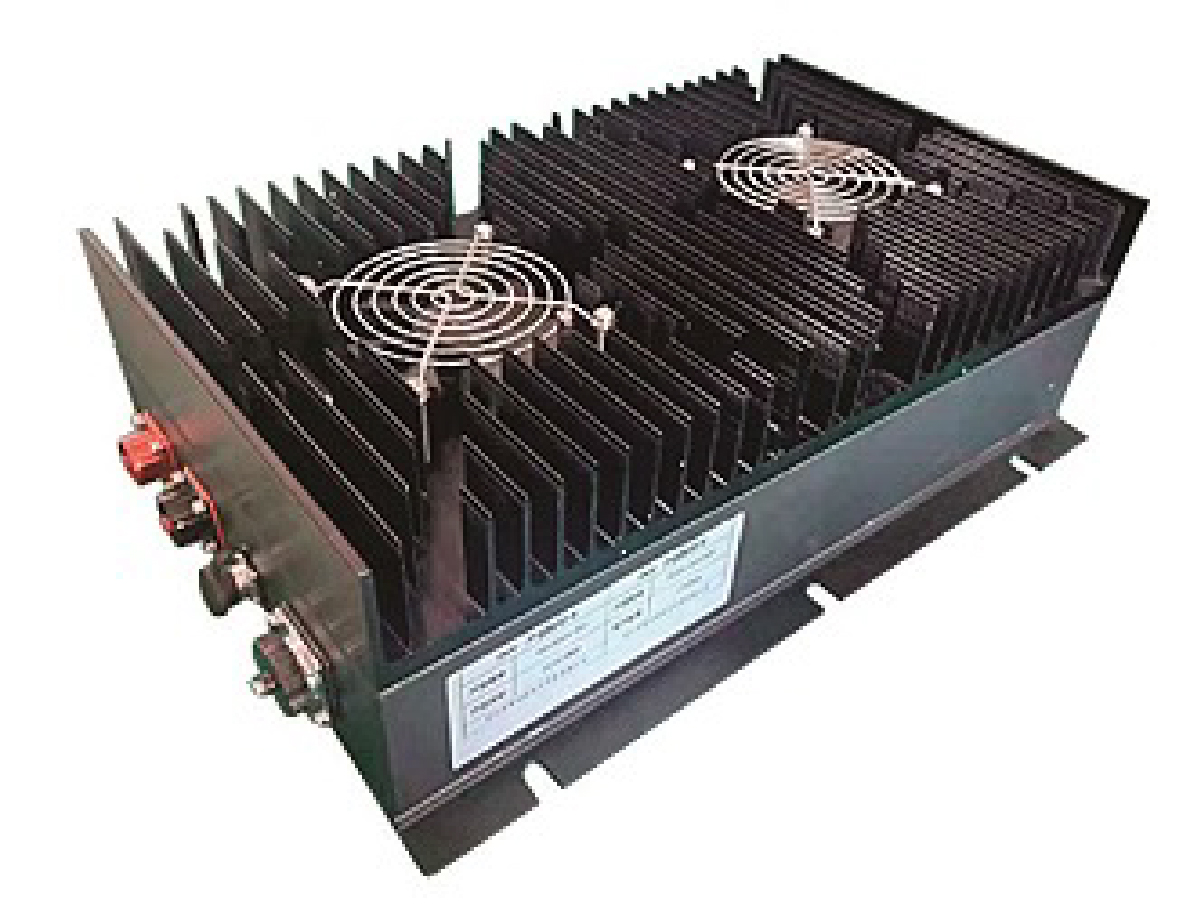

3kW
Inverter
24VDC to 110VAC/60Hz
Power: 150W, 300W, 1.2kW, 2kW
Cooling Method: Air cooling, self-cooling
Galvanic isolation between input and output
Output Voltage: 110VAC±10%，THD≤5%
Working Temperature Range: -40℃~+85℃
– Full protection against short circuit, overcurrent and overvoltage.
– Automatic switching between constant voltage and constant power modes
– Applicable to air conditioner, microwave ovens, induction cookers, etc. in RV, commercial vehicles, construction vehicles, etc.

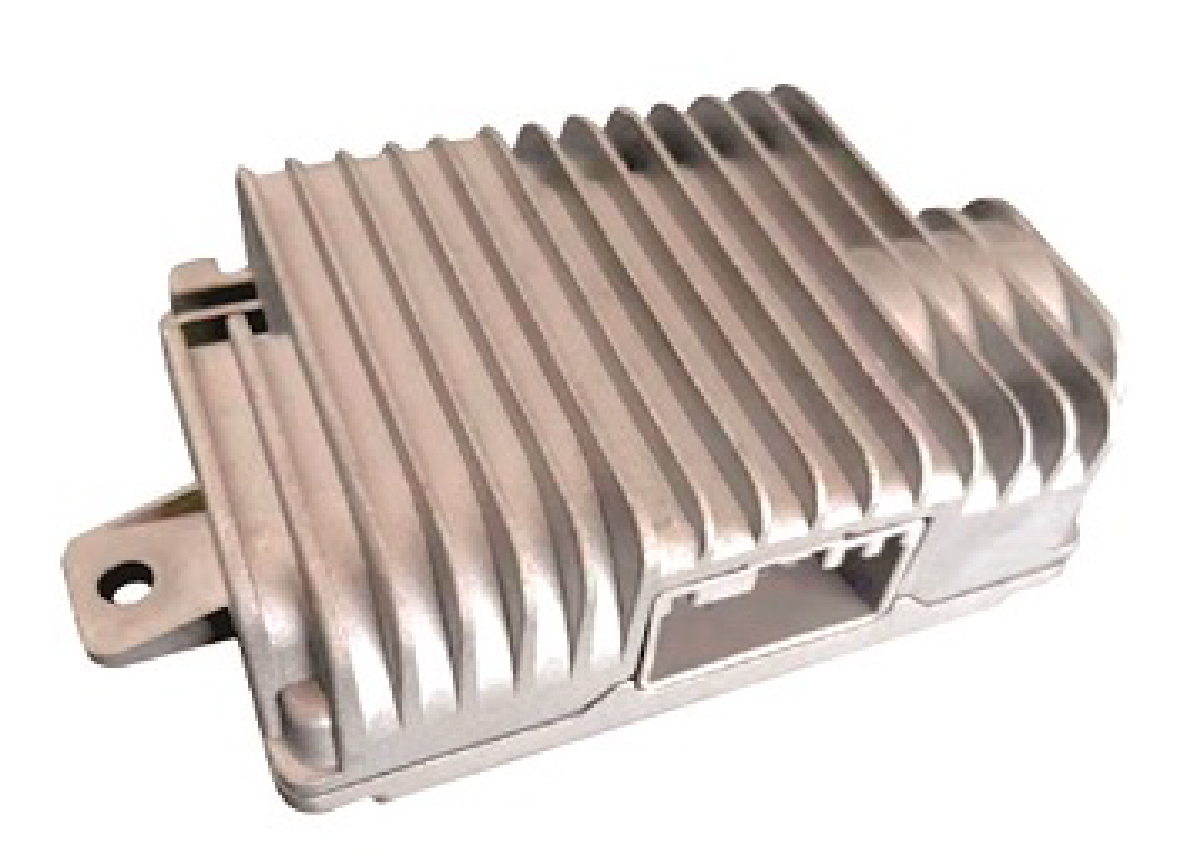

150W

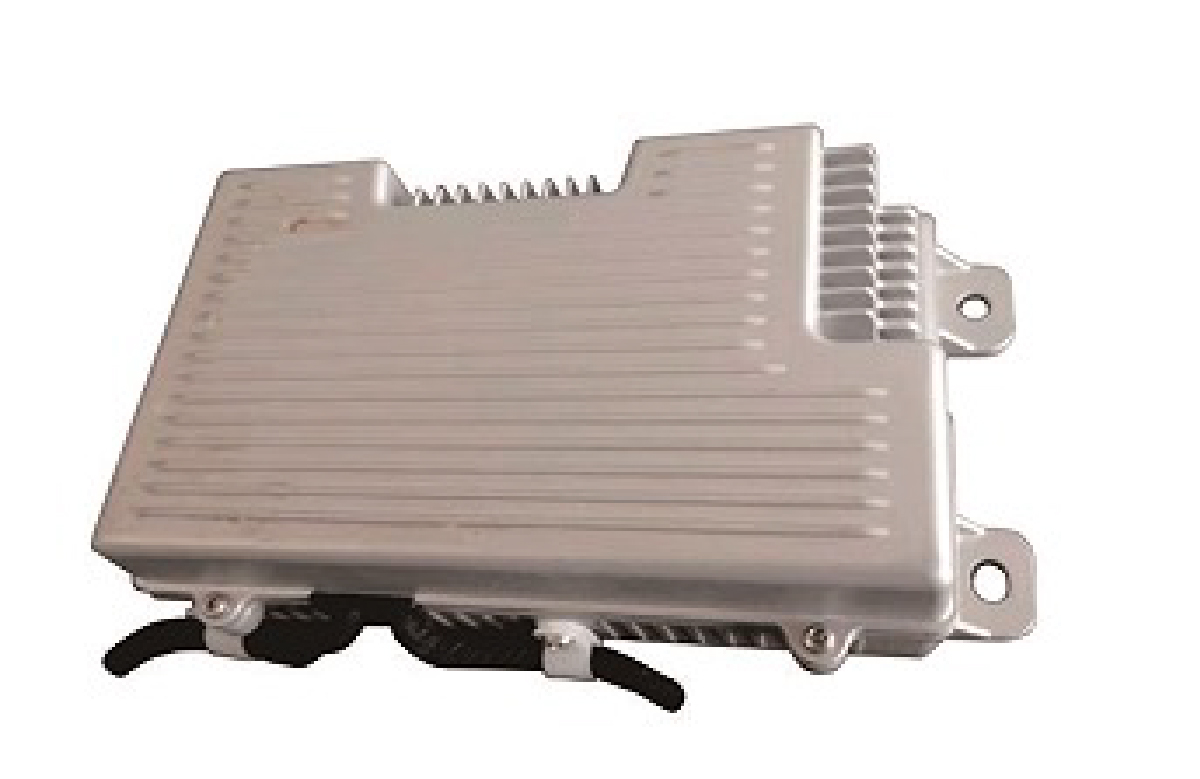

300W
1.2kW

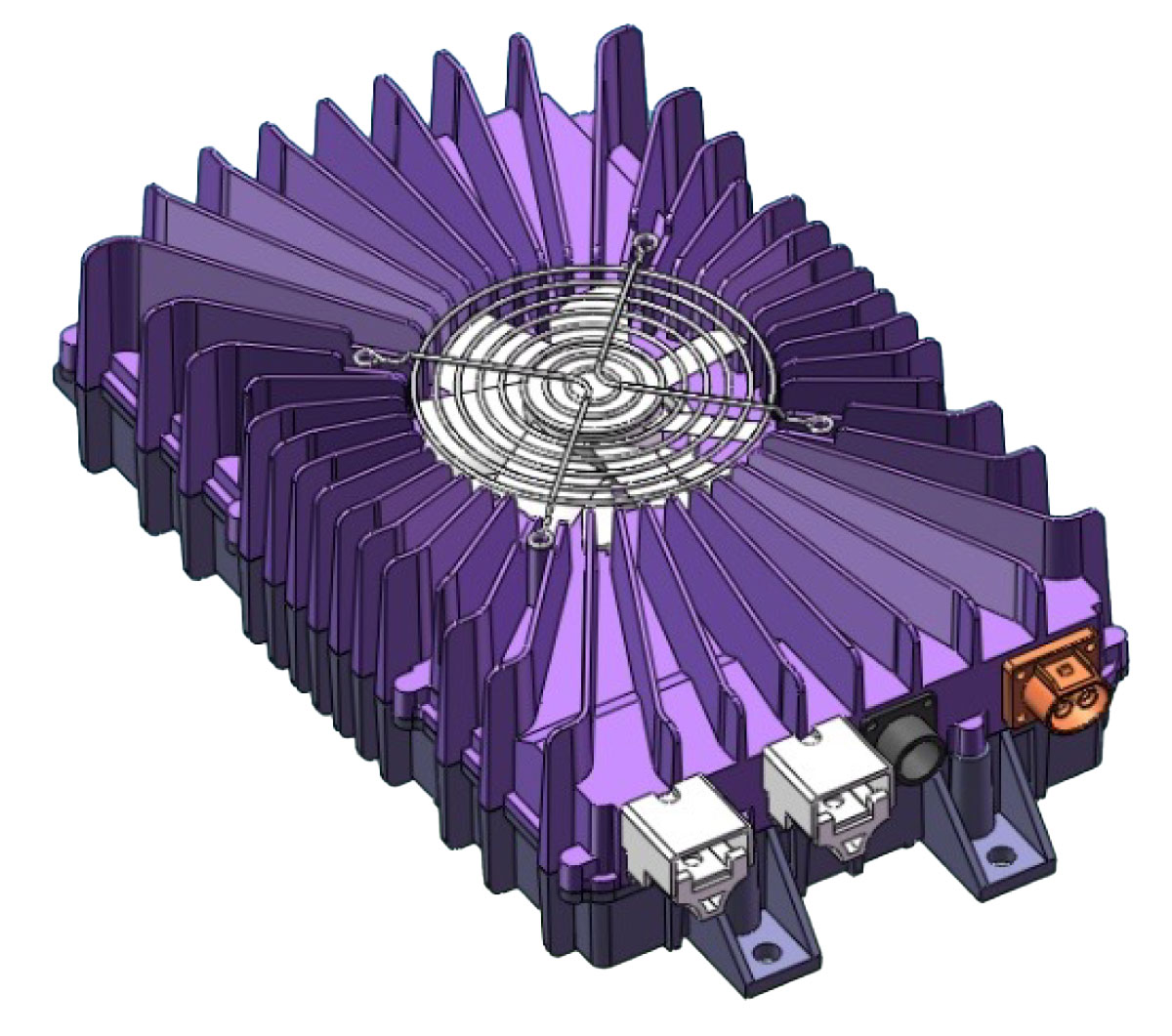

2kW
Smart Power Modules
SiC Power Modules

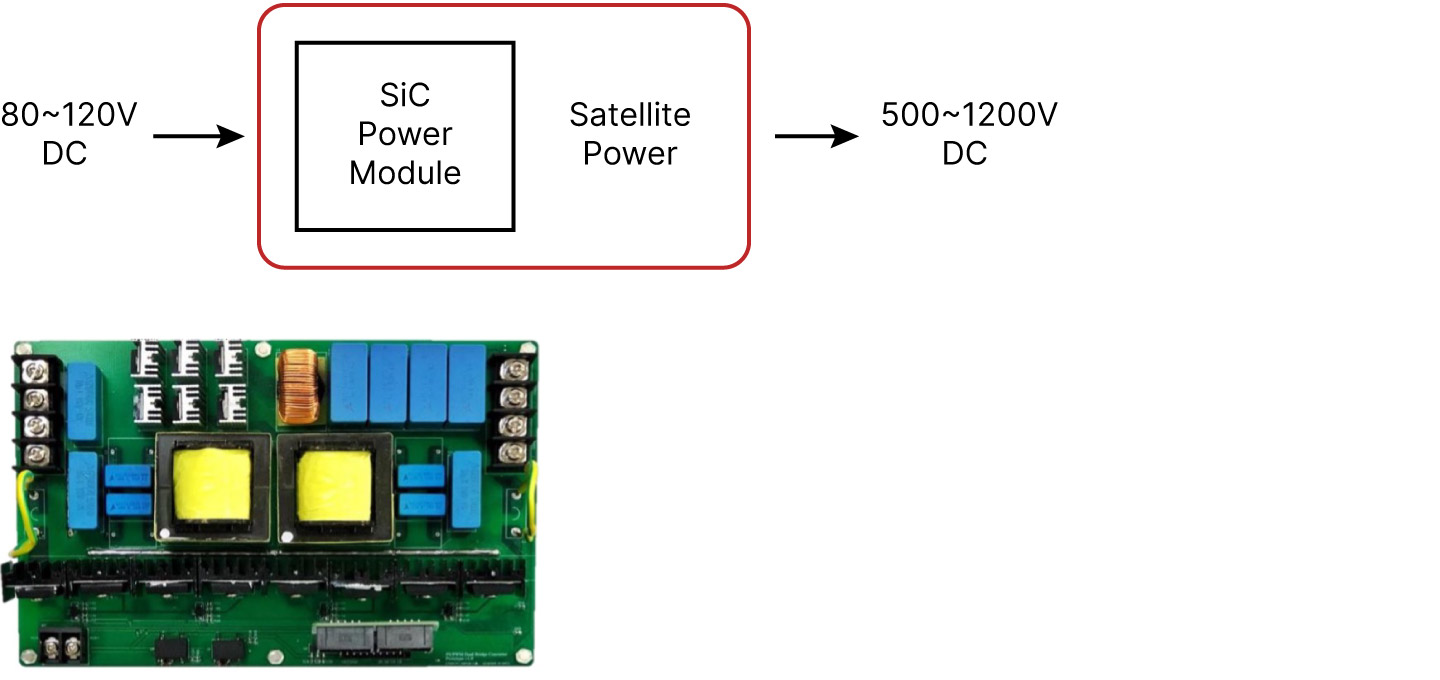

SiC Power Module – Satellite
In dealing with strong space radiation and high operating temperature during the satellite’s in-orbit operation, an all SiC power module was developed to improve system stability. Variable topology is used to cope with the impact of solar flares on the system.
Low Power
High Efficiency
Flexible Topology
Power Output 5kW
Power Density ≥ 1 kW/kg

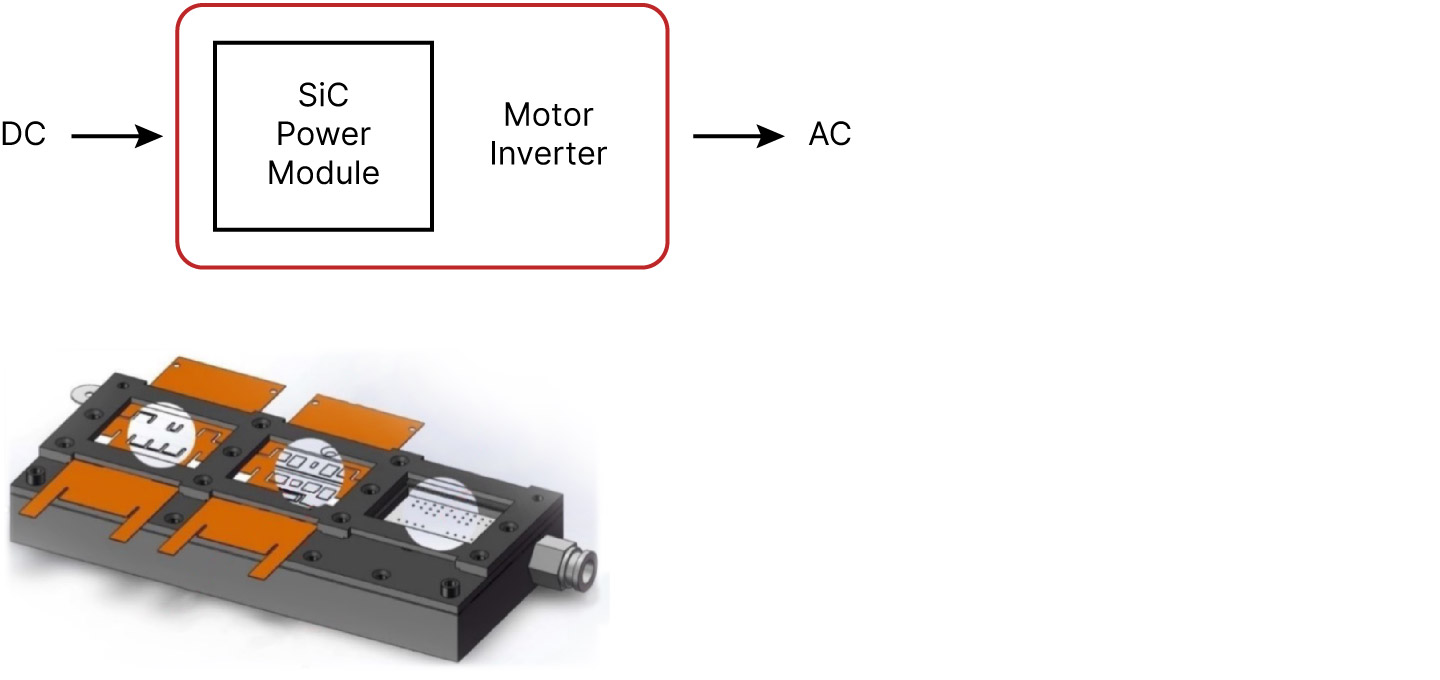

SiC Power Module – Electric Vehicle
With a unique sintering process, we improved the high temperature resistance of the entire module. A special Busbar process is used to achieve ultra-low parasitic inductance and ensure the high switching frequency of SiC.
High Power
High Temperature
High Frequency
Output: 50kW
Switching Frequency: 50kHz
Max Working Temperature: 110℃
SiC Max Junction Temperature: 250℃
GaN Power Modules

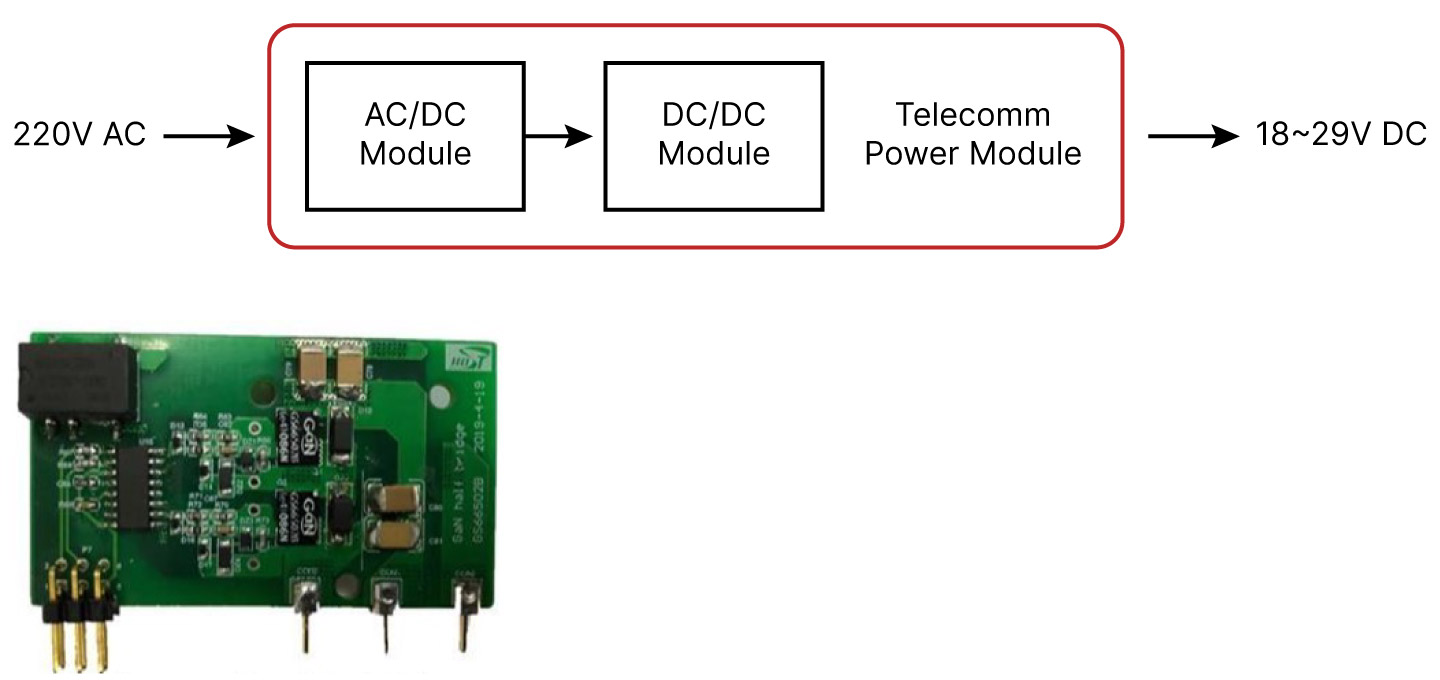

GaN Power Module – 5G Telecommunication
With high switching speed of GaN, combined with planar transformer technology, we have greatly reduced the size of the power supply and improved system efficiency.
Low Power
High Efficiency
Universal Digital Power Module
Output: 4kW
Efficiency: ＞95%

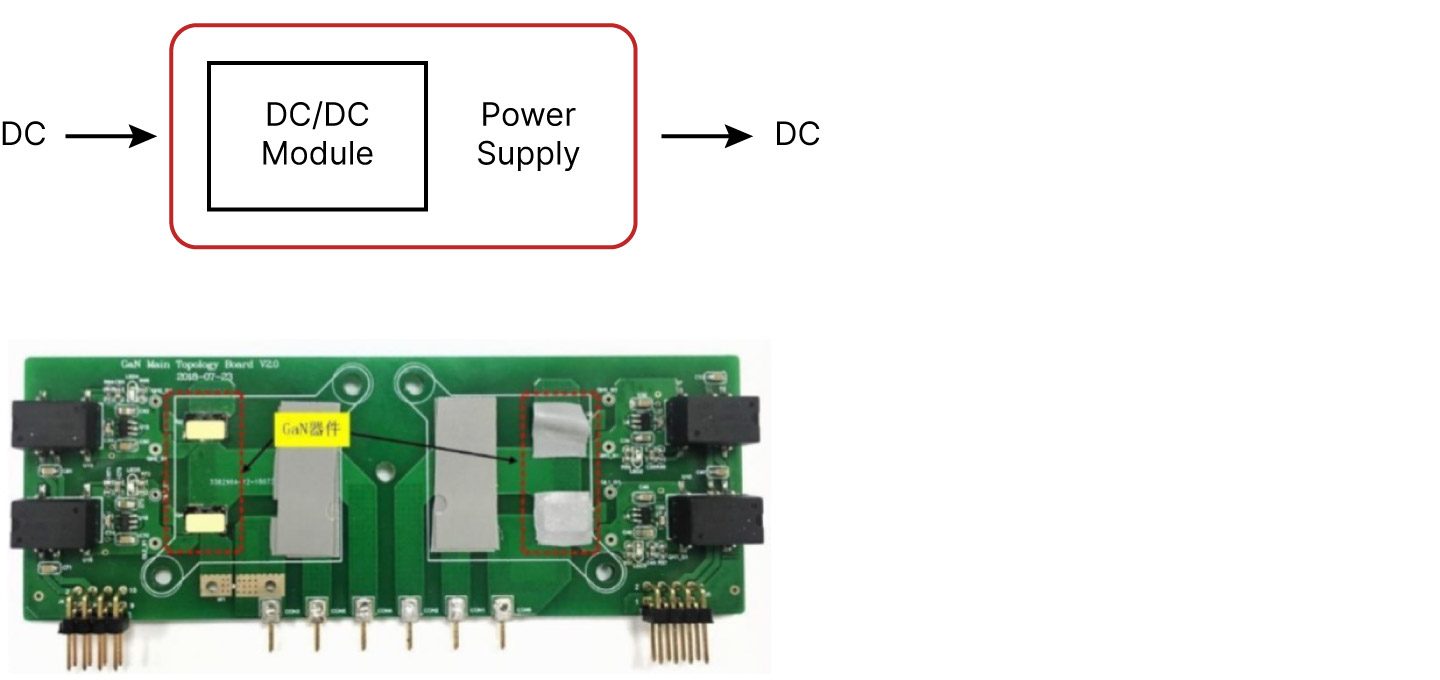

GaN Power Module – UAV Drone
With high switching speed of GaN, combined with planar transformer technology, we significantly reduced the weight of the power supply.
Low Power
UAV Drone Hybrid Power Supply
Power Output: 2.4kW
Switching Frequency: 0.5MHz
Efficiency: ＞96%
